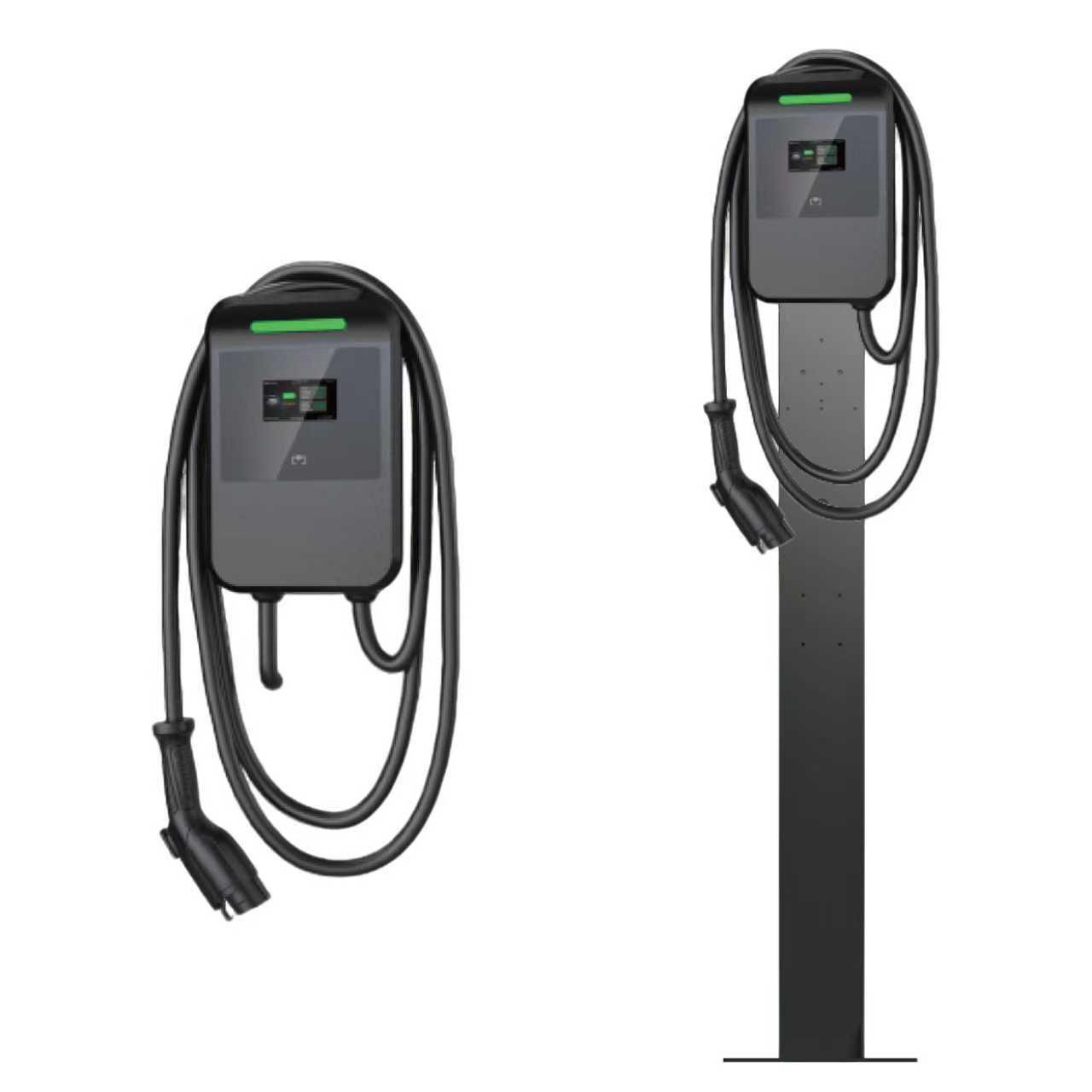

Charging pile
Rated Power
7KW
Input Current
32A
Output Current
32A
Communication Interface
4G/Ethernet
Charging Gun Cable Length
5M
Dimensions (W×D×H)
210*95*320(mm)
Protection Rating
IP54
Operating Ambient Temperature
-20°C~+55°C (Standard Version)
Protection Functions
Overvoltage, Overcurrent
Input Voltage
AC 220V±10%
Output Voltage
AC 220V±10%
Operating Frequency
50±5HZ
Charging Mode
Single Gun Charging
Mounting Method
Wall-mounted/Station-mounted
Weight
<5kg
Cooling Method
Natural Cooling
Storage Temperature
-35°C~+65°C (Standard Version)
Station Dimensions (W×D×H)
180×130×1357(mm)

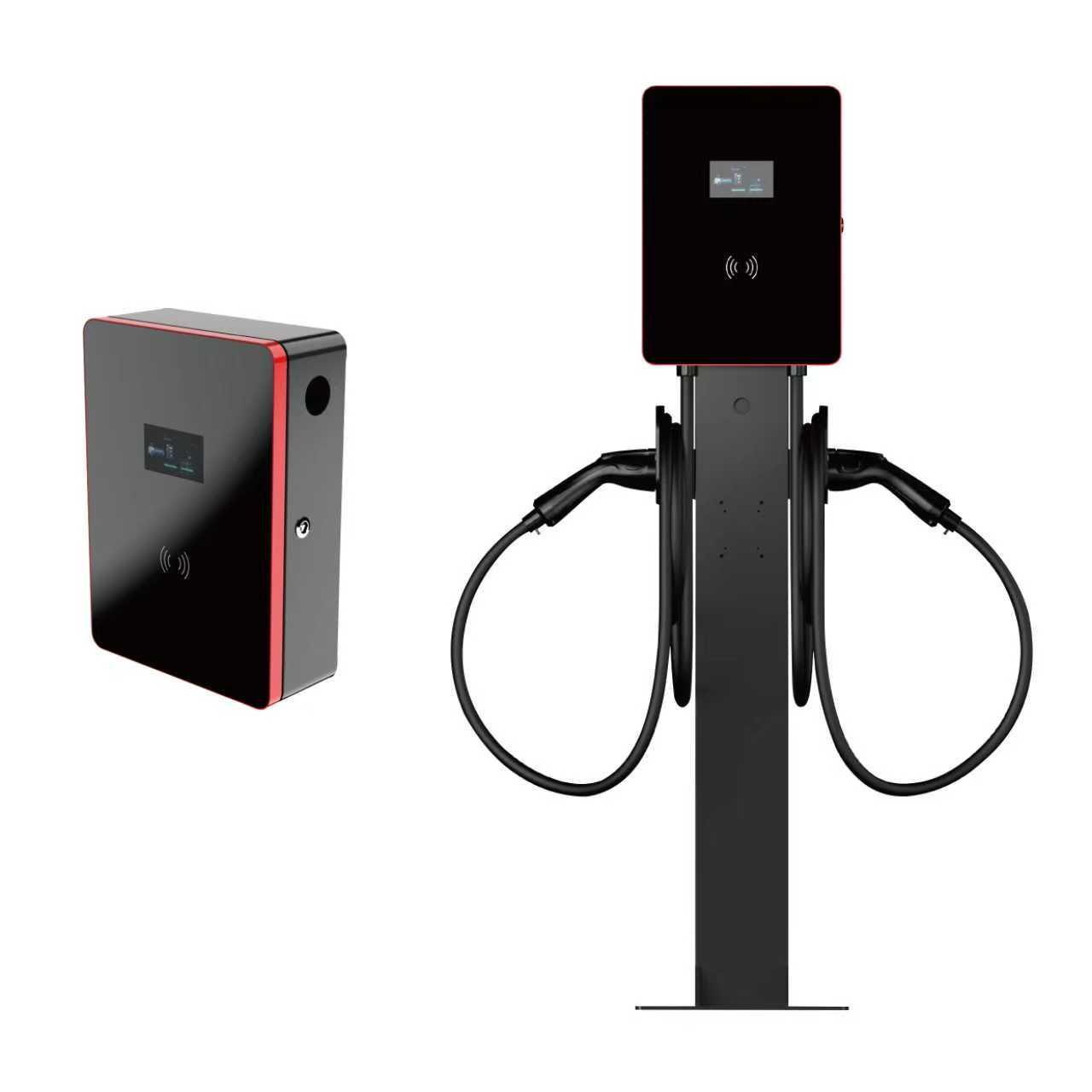

Charging pile
Rated power
14KW
Input current
32A*2
Output current
32A*2
Communication interface
4G/Ethernet
Charging gun cable length
5M
Dimensions (width × depth × height)
300*123*420(mm)
Protection level
IP54
Working environment temperature
-20℃ to +55℃ (Standard Version)
Protection function
Overvoltage, overcurrent
input voltage
AC 220V±10%
Output voltage
AC 220V±10%
Working frequency
50±5HZ
Charging mode
Single gun charging/Double gun charging
Fixed method
Wall-mounted/Pillar
Weight
<12kg
Cooling method
natural cooling
Storage temperature
-35℃ to +65℃ (Standard Version)
Charging pile
Rated power
21KW
Input current
32A
Output current
32A
Communication interface
4G/Ethernet
Charging gun cable length
5M
Dimensions (width × depth × height)
261*123.5*393(mm)
Protection level
IP54
Working environment temperature
-20℃ to +55℃ (Standard Version)
Protection function
Overvoltage, overcurrent
Input voltage
AC 380V±15%
Output voltage
AC 380V±15%
Working frequency
50±5HZ
Charging mode
Single gun charging
Fixed method
Wall-mounted/Pillar
Weight
<5kg
Cooling method
natural cooling
Storage temperature
-35℃ to +65℃ (Standard Version)

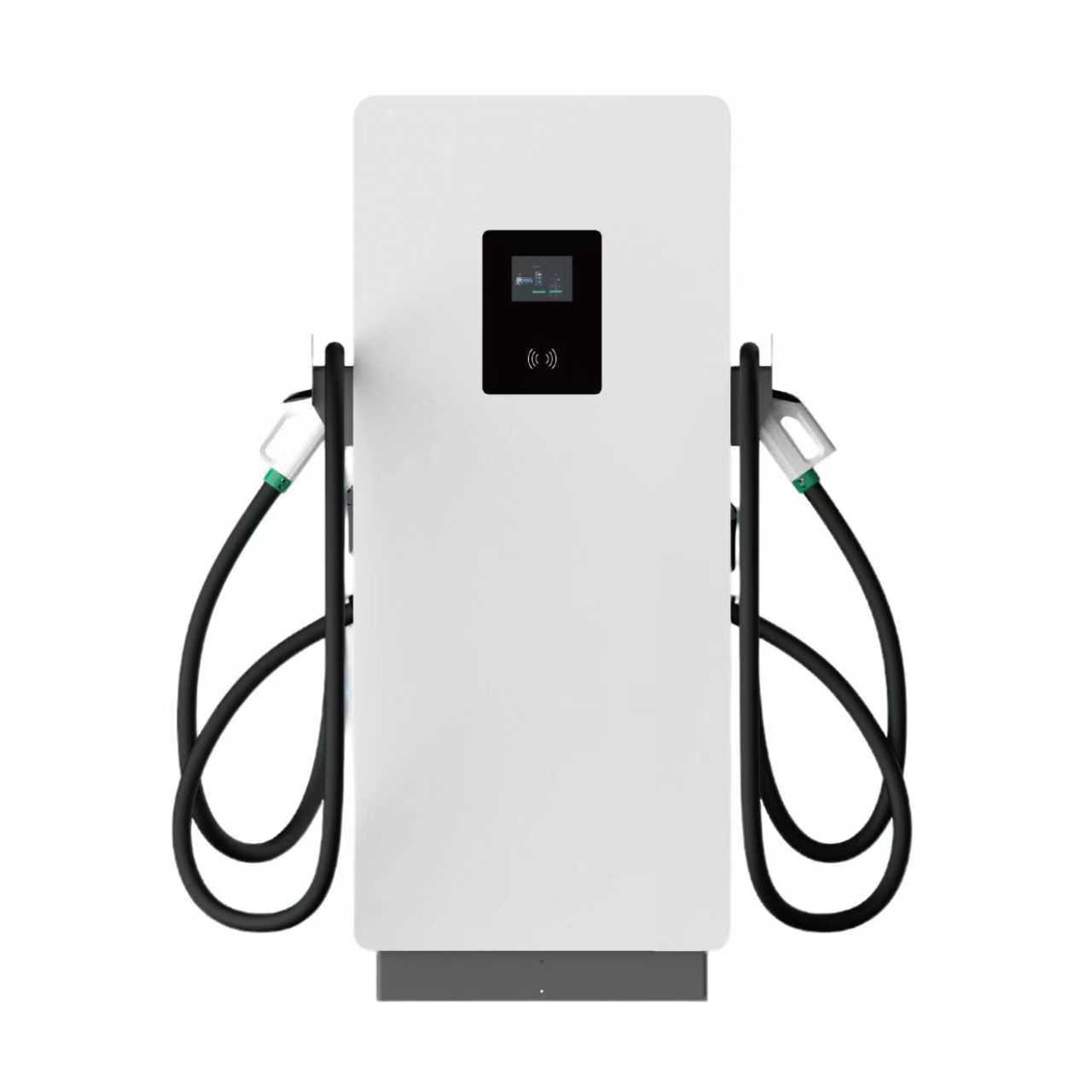

Charging pile
Rated power
120KW
Output voltage
200~750Vdc
Whole pile output current range
5~300A
Power factor
≥0.99
Power distribution mode
1 fast, 1 slow / double fast, fast gun at full power at any setting.
Screen size
7 inches
Dimensions (width × depth × height)
650×514×1650 (mm)
Cooling method
air cooling
Storage temperature
-35°C to +65°C (Standard Version)
Input voltage
AC 380V±15%
Maximum current output of a single gun
250A
Constant power range
400~750Vdc
Maximum efficiency
95.2%
Network interface
4G/Ethernet
Charging gun cable length
5m×2
Protection level
IP54
Working environment temperature
-25℃ to +55℃ (Standard Version)
Charging pile
Rated power
240KW
Output voltage
200~1000Vdc
Whole pile output current range
5~798A
Power factor
≥0.99
Power distribution mode
Two fast chargers, dual-gun full power/can charge both guns simultaneously
Screen size
7 inches
Dimensions (width × depth × height)
780*620*1800 (mm)
Cooling method
air cooling
Storage temperature
-35℃ to +65℃ (Standard Version)
Input voltage
AC 380V±15%
Maximum current output of a single gun
250A
Constant power range
300~1000Vdc
Maximum efficiency
95%
Network interface
4G/Ethernet
Charging gun cable length
7.5m×2
Protection level
IP54
Working environment temperature
-25℃ to +55℃ (Standard Version)
