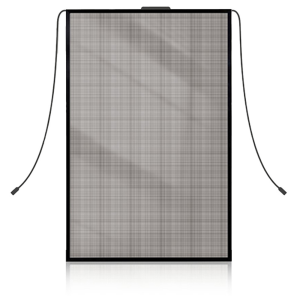

BIPV
Version
Power Wall-Standard
Product Dimensions
1192*792*15mm
Product Structure
5mm ultra-clear tempered glass + 1.14mm PVB + 3mm Solibro (CIGS) cell + 1.14mm PVB + 5mm ultra-clear tempered glass
Cable Type
2.5mm² solar cable
Pmax
140W
VOC
108.90V
VMPP
86.10V
Color
Diamond Black
Weight
33kg
Junction Box
IP67 protection rating (66mm×60mm×12.5mm); Integrated junction box with one bypass diode
Cable Connector
MC4
ISC
1.72A
IMPP
1.63V
Maximum Conversion Efficiency
15%
BIPV
Version
Power Wall-Colored
Product Dimensions
1192*792*15mm
Product Structure
5mm ultra-clear tempered glass + 1.14mm PVB + 3mm Solibro (CIGS) chip + 1.14mm PVB + 5mm ultra-clear tempered glass
Cable Type
2.5mm² solar cable
Pmax
135W
VOC
108.90V
VMPP
86.10V
Color
Golden Yellow/Rose Purple/Aqua Blue (Custom colors available upon request)
Weight
33kg
Junction Box
IP67 protection rating (66mm × 60mm × 12.5mm); integrated junction box with one bypass diode
Cable Connector
MC4
ISC
1.72A
IMPP
1.63V
Maximum Conversion Efficiency
15%
BIPV
Version
Power Wall-Stone-Like
Product Dimensions
1192*792*15mm
Product Structure
5mm Ultra-Clear Tempered Glass + 1.14mm PVB + 3mm Solibro (CIGS) Chip + 1.14mm PVB + 5mm Ultra-Clear Tempered Glass
Cable Type
2.5mm² Solar Cable
Pmax
140W
VOC
108.90V
VMPP
86.10V
Style
Large Rain Flower / Black Diamond
Weight
33kg
Junction Box
IP67 Protection Rating (66mm × 60mm × 12.5mm); Integrated Junction Box with One Bypass Diode
Cable Connector
MC4
ISC
1.72A
IMPP
1.63V
Maximum Conversion Efficiency
15%
BIPV
Version
Power Curtain - Standard
Product Dimensions
1204*792*33mm
Product Structure
5mm Ultra-Clear Tempered Glass + 1.14mm PVB + 3mm Solibro (CIGS) Chip + 1.14mm PVB + 5mm Ultra-Clear Tempered Glass + 12A + 6mm Ultra-Clear Tempered Glass
Cable Type
2.5mm² solar cable, positive and negative cable lengths both 1200mm
Power
56-126W
VOC
103V
VMPP
81V
Color
Diamond Black (Customizable light transmittance: 10%-60%)
Weight
50kg
Junction Box
Pen-Type Junction Box; IP67 Rating, Includes 1 Bypass Diode
Cable Connector
MC4
ISC
1.3A
IMPP
1.24V
Maximum Conversion Efficiency
11%
BIPV
Version
Power Curtain - Colored
Product Dimensions
1204*792*33mm
Product Structure
5mm Ultra-Clear Tempered Glass + 1.14mm PVB + 3mm Solibro (CIGS) Chip + 1.14mm PVB + 5mm Ultra-Clear Tempered Glass + 12A + 6mm Ultra-Clear Tempered Glass
Cable Type
2.5mm² solar cable, positive and negative cable lengths both 1200mm
Power
56-126W
VOC
103V
VMPP
83.2V
Color
Golden Yellow/Rose Purple/Aqua Blue (Custom colors available upon request)
Supports custom light transmittance from 10% to 60%
Weight
50kg
Junction Box
Pen-Type Junction Box; IP67 Rating, Includes 1 Bypass Diode
Cable Connector
MC4
ISC
1.3A
IMPP
1.14V
Maximum Conversion Efficiency
10%
BIPV
Version
Soundproof and Thermal Insulation
Product Dimensions
1204*792*33mm
Product Structure
5mm Ultra-Clear Tempered Glass + 1.14mm PVB + 3mm Solibro (CIGS) Chip + 1.14mm PVB + 5mm Ultra-Clear Tempered Glass + 12A + 6mm Ultra-Clear Tempered Glass
Cable Type
2.5mm² solar cable, positive and negative cable lengths both 1200mm
Power
56-126W
VOC
103V
VMPP
81V
Color
Diamond Black (Customizable light transmittance: 10%-60%)
Weight
50kg
Junction Box
Pen-Type Junction Box; IP67 Rating, Includes 1 Bypass Diode
Cable Connector
MC4
ISC
1.3A
IMPP
1.24V
Maximum Conversion Efficiency
11%
